calender/Convnext-Chexpert-Attention

ConvNeXt-Base CheXpert Classifier with CBAM Attention

Fine-tuned ConvNeXt-Base with CBAM attention for multi-label classification of 14 thoracic pathologies from chest X-rays. Iteration 6 (final model) with 0.81 AUC.

📚 Full training code, examples & scripts: GitHub Repository

---

🔬 Model Overview

This is a production-ready classifier for automated chest X-ray interpretation. The model combines modern ConvNeXt architecture with Convolutional Block Attention Module (CBAM) for improved pathology detection and localization.

Key Specs:

• Architecture: ConvNeXt-Base + CBAM
• Training Iteration: 6 (final)
• Validation AUC: 0.81
• Input: 384×384 frontal chest X-rays
• Output: 14 pathology probabilities
• Model Size: 300MB
• Parameters: ~88M + CBAM

---

📋 Detectable Pathologies (14 Classes)

#	Pathology	#	Pathology
1	No Finding	8	Pneumonia
2	Enlarged Cardiomediastinum	9	Atelectasis
3	Cardiomegaly	10	Pneumothorax
4	Lung Opacity	11	Pleural Effusion
5	Lung Lesion	12	Pleural Other
6	Edema	13	Fracture
7	Consolidation	14	Support Devices

---

📊 Performance Results

Iteration 6 (Final Model)

• Overall Validation AUC: 0.81
• Training approach: Multi-iteration refinement with CBAM attention
• Dataset: CheXpert (Stanford ML Group, 224K+ images)

Model outputs: Sigmoid-activated probabilities for each pathology (0-1 range)

---

🖼️ GradCAM Visualizations

Model predictions with attention maps showing pathology localization:

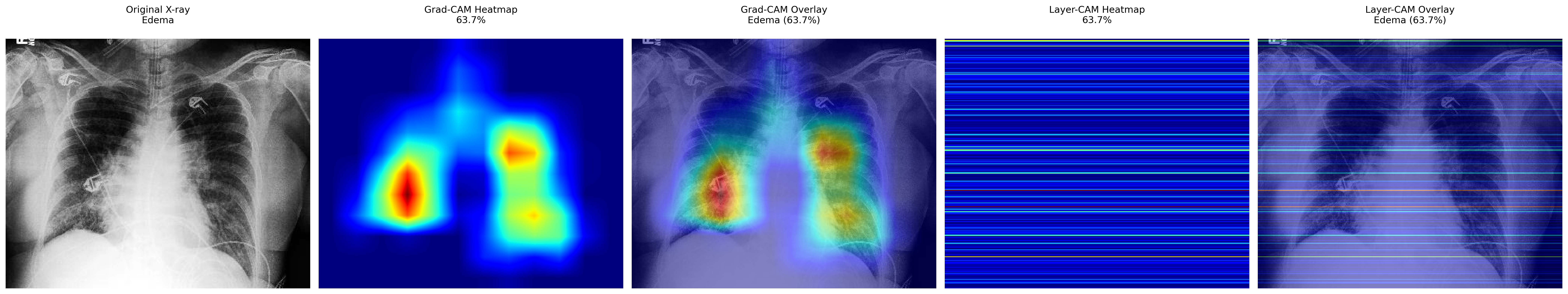

Example 1: Edema Detection

• Prediction: Edema 63.7%
• Visualization: GradCAM highlights fluid accumulation regions

Example 2: Fracture Detection

• Prediction: Fracture 67.2%
• Visualization: GradCAM highlights rib/bone fracture area

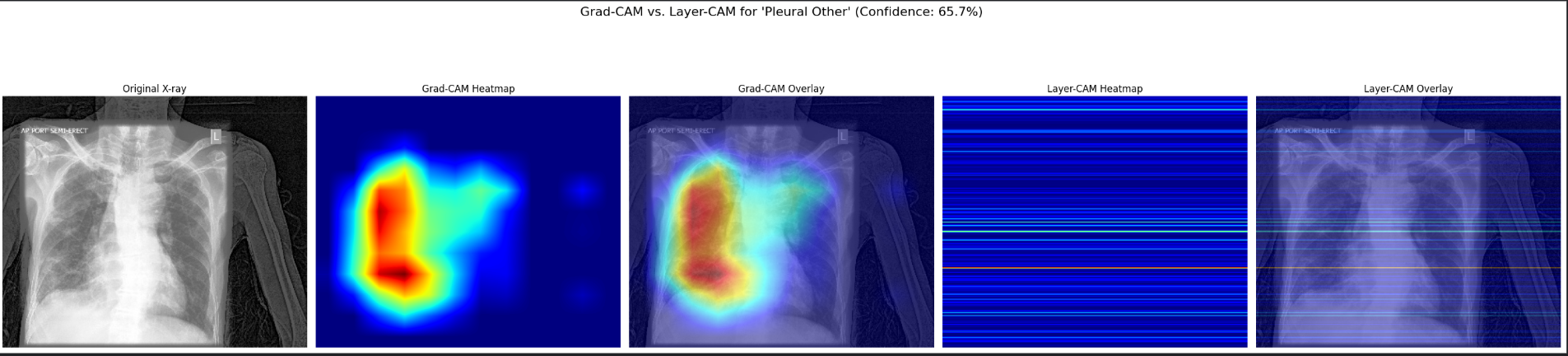

Example 3: Pleural Other

• Prediction: Pleural Other 65.7%
• Visualization: GradCAM shows pleural involvement

Example 4: Atelectasis Detection

• Prediction: Atelectasis 63.1%
• Visualization: GradCAM localizes collapsed lung regions

---

🚀 Quick Start

Installation

pip install torch torchvision timm Pillow opencv-python

Basic Inference

import torch
from PIL import Image
from torchvision import transforms
import timm

# Load model
device = torch.device('cuda' if torch.cuda.is_available() else 'cpu')
model = timm.create_model('convnext_base', pretrained=False, num_classes=14)
model.load_state_dict(torch.load('model.pth', map_location=device))
model.eval()

# Preprocess
transform = transforms.Compose([
    transforms.Grayscale(num_output_channels=3),
    transforms.Resize((384, 384)),
    transforms.ToTensor(),
    transforms.Normalize(
        mean=[0.5029414296150208]*3,
        std=[0.2892409563064575]*3
    )
])

# Predict
image = Image.open('chest_xray.jpg')
input_tensor = transform(image).unsqueeze(0).to(device)

with torch.no_grad():
    logits = model(input_tensor)
    probs = torch.sigmoid(logits)

pathologies = [
    "No Finding", "Enlarged Cardiomediastinum", "Cardiomegaly",
    "Lung Opacity", "Lung Lesion", "Edema", "Consolidation",
    "Pneumonia", "Atelectasis", "Pneumothorax", "Pleural Effusion",
    "Pleural Other", "Fracture", "Support Devices"
]

for pathology, prob in zip(pathologies, probs[0]):
    print(f"{pathology}: {prob.item():.3f}")

---

🏗️ Model Architecture

ConvNeXt-Base:

• Modern efficient architecture (Liu et al., 2022)
• ImageNet-22k pretrained weights
• Inverted bottleneck design
• LayerNorm + GELU activations

CBAM Attention Module:

• Channel attention: Refines feature importance
• Spatial attention: Highlights important regions
• Lightweight addition to base architecture
• Improves pathology localization

Result: Better accuracy + interpretability with GradCAM

---

📚 Dataset Information

• Source: CheXpert Dataset (Stanford ML Group)
• Size: 224,316 chest X-rays from 65,240 patients
• Period: October 2002 - July 2017 (Stanford Hospital)
• Labels: 14 pathologies auto-extracted from radiology reports
• Uncertainty: Labels include uncertainty handling (-1 for uncertain)

---

⚠️ IMPORTANT: Medical Disclaimer

🚨 FOR RESEARCH & EDUCATION ONLY 🚨

❌ DO NOT USE FOR:

• Clinical diagnosis or treatment decisions
• Emergency medical situations
• Replacing professional radiologist review
• Patient care without expert validation

⚠️ Limitations:

• Not clinically validated or FDA-approved
• Trained on historical Stanford data (2002-2017)
• Performance may vary on different populations/equipment
• Requires qualified radiologist review for any clinical use

✅ Appropriate Uses:

• Academic research and benchmarking
• Algorithm development and comparison
• Educational demonstrations
• Proof-of-concept prototypes

Always consult qualified healthcare professionals for medical decisions.

---

📝 Citation & Attribution

You MUST cite this work if used in publications:

@software{convnext_chexpert_attention_2025,
  author = {Time},
  title = {ConvNeXt-Base CheXpert Classifier with CBAM Attention},
  year = {2025},
  publisher = {HuggingFace},
  url = {https://huggingface.co/calender/Convnext-Chexpert-Attention}
}

@article{irvin2019chexpert,
  title={CheXpert: A large chest radiograph dataset with uncertainty labels and expert comparison},
  author={Irvin, Jeremy and Rajpurkar, Pranav and Ko, Michael and Yu, Yifan and others},
  journal={AAAI Conference on Artificial Intelligence},
  volume={33},
  pages={590--597},
  year={2019}
}

Claiming you trained this model when you didn't is scientific misconduct.

---

🔗 Links

• GitHub (Code + Training): https://github.com/jikaan/convnext-chexpert-attention
• CheXpert Dataset: https://stanfordmlgroup.github.io/competitions/chexpert/
• Paper: https://arxiv.org/abs/1901.07031

---

📄 License

Apache License 2.0 - See LICENSE for details.

---

Created by Time | October 2025
